The compact and mobile machine ATS-MSX 420 30 mm
Time：2015-01-16 13:13:17

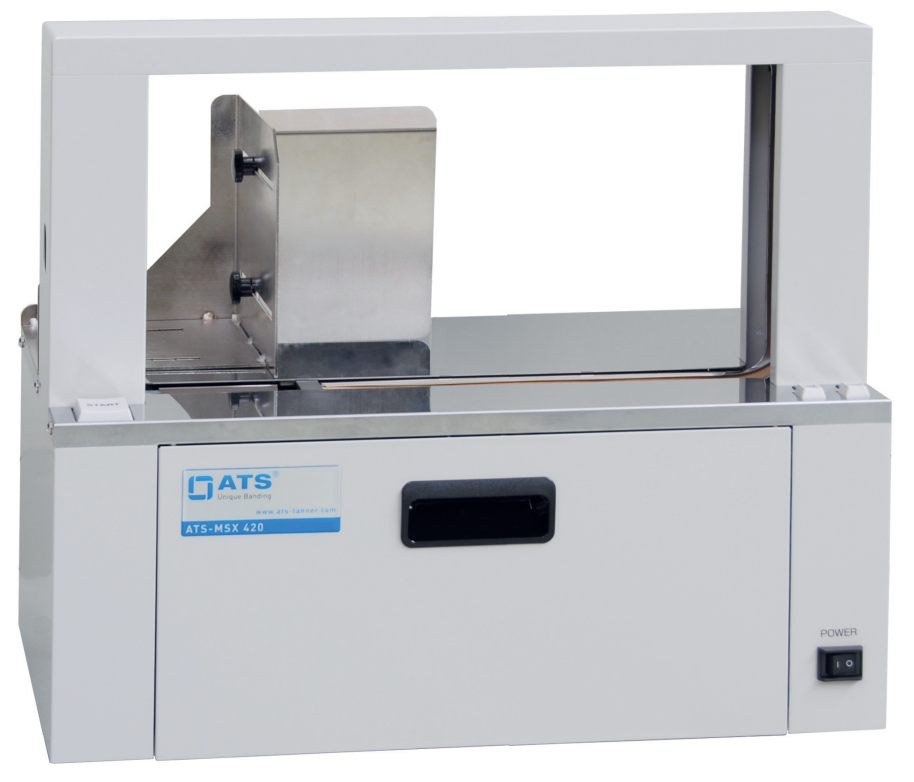

The compact and mobile machine
ATS-MSX 420 30 mm
Characteristics
Description
With the lightweight, space-saving ATS-MSX 420 paper and film bands can be processed using only one machine. Also thin film bands with a thickness from 60 µ can be used. Thanks to the pre-programmed functions "pause" and "soft" (for soft products) and "squeeze" (for increased band tension) this machine is very user friendly. With this mobile, inexpensive machine products get efficiently and gently banded.
Technical specifications
Dimensions and weight
Product dimensions、
Performance
Additional data
| Width | 569 mm |
| Height | 490 mm |
| Weight | 29 kg |
| Min. product length | 20 mm |
| Min. product height | 2 mm |
| Max. product length | 420 mm |
| Max. product height | 210 mm |
| Max. cycles per minute | 30 |
| Arch width | Arch height |
|---|---|
| 420 mm | 210 mm |
| Type of material | Film, Papier |
